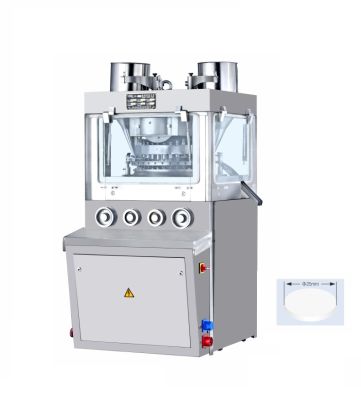

ZP31/ZP29/ZP27 Rotary Tablet Press

Classification:

Medium Speed Tablet Press

online message

13818352360

Product Description

●　Application：

This machine is a double-press type continuous auto¥matic tablet press machine for pressing granular raw materπials into tablets. It is mainly used in pharmaceutical, chemistry, foodst☆uff, electronic industries and suitable for make lar≤ge size tablets.

●　Feature：

1.　Double press type with high productivity, suitable for making big s∞ize tablets.
2.　Made of stainless steel, the housing is fully closed. The surface ↑of the rotary turret is covered with a hardened layer so that the turret surfa≠ce is wear resistant. The machine conforms to GMP requirements.
3.　Adopt transparent windows, tableting state can be observed clearly. The wi™ndows can be opened, cleaning and maintenance is easy.
4.　The machine can stop automatically in case of overp≠ressure.
5.　Speed adjustable, operation simple and reliable.

●　Technical Parameters：

Model	ZP31	ZP29	ZP27
Number of Stations	31	29	27
Max Main Pressure　(KN)	80	80	80
Max Tablet Diameter (mm)	25	25	25
Max Filling Depth　(mm)	15	15	15
Max Tablet Thickness (mm)	6	6	6
Max Turret Speed (r/min)	30	30	30
Max Production Capacity (pcs/h)	111600	104400	97200
Motor Power (kw)	4	4	4
Overall Size (mm)	1140×1000×1650
Machine Weight (kg)	1850
