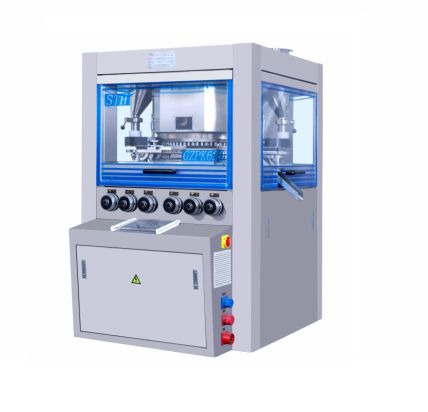

GZP(K)620 series High Speed Rotary Tablet Press

Classification:

High Speed Tablet Pres...

online message

13818352360

Product Description

Application

This machine is one kind of double side rotary tablet press machine, whiΩch can press granular materials into round shape tablet∞, irregular tablet or double-side engraved tablet.

This machine is mainly used in pharmaceutical, chemistry, f¥oodstuff, electronic industries.

Feature:

1. High speed with large quantity punches, double press rollers, suitable for mass productio✔n.

2. Made of stainless steel, the housing is fully clos>ed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.

3. Perfect tableting system, twice compression formin÷g, reasonable framework with proper space and big pressure roller, machine performance∏ is reliable and no tablet weight difference.

4. Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.

5. Tooling track adopt double-side lifting structure, the punches are balanced stress and w↑ear resistance.

6. High performance electrical control system, ensure each progr>am processing precisely.

7. Automatic oil&grease central lubrication system, e§nsure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.

8. Special oil proof, dust proof and noise proof design.

Technical Parameter:

型号 Model		GZPK-45	GZPK-55	GZPK-65	GZPK-69
沖模數 Number of Stations		45	55	65	69
沖模類型 Tooling Standard		D	B	BB	BBS
最大主壓力 Max Main Pressure (KN)		100
最大預壓力 Max Pre-pressure (KN)		20
最大壓片直徑	圓形片round tablet	25	18	13	11
Max Tablet Diameter (mm)	異形片irregular tablet	25	19	16	13
最大充填深度 Max Filling Depth (mm)		20	18	15	15
最大片厚 Max Tablet Thickness (mm)		10	8	6	6
最高轉台轉速 Max Turret Speed (r/min)		60
最大産量 Max Production Capacity (pcs/h)		324000	396000	468000	496800
主電機功率 Motor Power (kw)		11
外形尺寸 Overall Size (mm)		1530×1250×1900
機器重量 Machine Weight (kg)		4200
