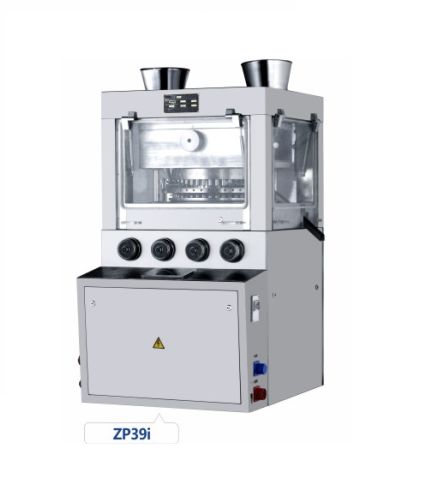

ZP35B/ZP37B/ZP39i Rotary Tablet Press

Classification:

Medium Speed Tablet Press

online message

13818352360

Product Description

●　Application：

This machine is one kind of double side rotary tablet press machine, which can press g≥ranular materials into round shape tablet, irregular tablet or double-side enΩgraved tablet.
This machine is mainly used in pharmaceutical, chemistry, foodstuεff, electronic industries.

●　Feature：

1.　Made of stainless steel, the housing is fully closed. The surεface of the rotary turret is covered with a hardened layer so that the turret surface is✔ wear resistant. The machine conforms to GMP requirements.
2.　Adopt transparent windows, tableting state can be obs₹erved clearly. The windows can be opened, cleaning∏ and maintenance is easy.
3.　PLC and touch screen control, speed adjustable by frequen←cy inverter, all the running parameter can be set an™d shown.
4.　With high main-pressure and pre-pressure, extending the pressin<g time and making good quality tablets.
5.　Hydraulic overload protection device is equipped, t he machine can stop automatically in case of overpressure to protect the p unch pins from being damaged.
6.　ZP39i is upgraded model from ZP35B, its output is increased about 15% more than ZP≤35B.
7.　Force feeder is optional on the machine.

●　Technical Parameters：

Model		ZP39i	ZP37B	ZP35B
Number of Stations		39	37	35
Tooling Standard		ZP
Max Main Pressure (KN)		80
Max Pre-pressure (KN)		10
Max Tablet Diameter (mm)	round tablet	13
	irregular tablet	16
Max Filling Depth (mm)		15
Max Tablet Thickness (mm)		6
Max Turret Speed (r/min)		36
Max Production Capacity　(pcs/h)		168000	160000	151200
Motor Power (kw)		4
Overall Size (mm)		1160×1070×1720
Machine Weight (kg)		2000
